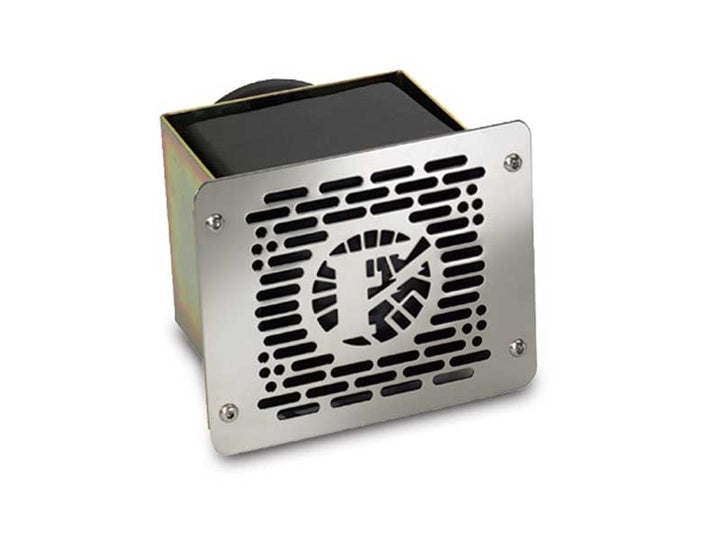

Federal Signal BP 200 Siren Speaker
- 200 W speaker features Neodymium driver for increased service life
- Designed to be attractively recess-mounted through the bumper of a vehicle
- Available with the stainless steel Electric “F” grille or the traditional Chrome Q-Siren® grille
- Two-year warranty
Approvals
- BP200 Sound output meets SAE J1849
- Class A
Models
BP200-EF - 200W Stainless Steel Electric "F" Grille, Recess Mount
BP200-Q - 200W Chrome Q-Siren Grille, Recess Mount
Constructed of a sturdy, cast aluminum housing
The BP200 speaker is designed to perform in all weather conditions and is compatible with most Federal Signal sirens.
Revolutionary Design
The dual diverging manifold design of the BP200 projects sound more uniformly than conventional speakers. This means more sound projection to both sides, as well as to the front of the vehicle.
The BP200 speaker incorporates (2) 100-watt Neodymium drivers to produce a full 200-watt of output. Designed to flush mount through the bumper of a vehicle attractively, the BP200 is available with a choice of two grilles. As a fire truck siren, the BP200-EF includes a polished, stainless steel “Electric F“ grille. The BP200-Q includes a backplate and the classic chrome-plated “Q” grille, a staple in the fire industry.
BP200 Series mounting options
The BP200 series of compact speakers are available with various mounting options to perfectly fit specific applications
| BP200-EF | BP200-Q | ||
| Power | 200 W | 200 W | |
| Housing Material | 356 Aluminium | ||
| Operating Temp. | -40˚ to +176˚ F (-40˚ to +80˚ C) | ||
| Input Voltage | 32 Vrms | ||
| Physical Specifications | |||
| Width | 7.7 in (19.6 cm) | 9.9 in (25.1 cm) | |
| Height | 6.6 in (16.8 cm) | 9.9 in (25.1 cm) | |
| Depth | 0.04 in (0.1 cm) | 2.2 in (5.6 cm) | |
| Ship Weight | |||
| 20.7 lb (9.4 kg) | 22.5 lb (10.2 kg) | ||
- 200 W speaker features Neodymium driver for increased service life
- Designed to be attractively recess-mounted through the bumper of a vehicle
- Available with the stainless steel Electric “F” grille or the traditional Chrome Q-Siren® grille
- Two-year warranty
Approvals
- BP200 Sound output meets SAE J1849
- Class A
Models
BP200-EF - 200W Stainless Steel Electric "F" Grille, Recess Mount
BP200-Q - 200W Chrome Q-Siren Grille, Recess Mount
Constructed of a sturdy, cast aluminum housing
The BP200 speaker is designed to perform in all weather conditions and is compatible with most Federal Signal sirens.
Revolutionary Design
The dual diverging manifold design of the BP200 projects sound more uniformly than conventional speakers. This means more sound projection to both sides, as well as to the front of the vehicle.
The BP200 speaker incorporates (2) 100-watt Neodymium drivers to produce a full 200-watt of output. Designed to flush mount through the bumper of a vehicle attractively, the BP200 is available with a choice of two grilles. As a fire truck siren, the BP200-EF includes a polished, stainless steel “Electric F“ grille. The BP200-Q includes a backplate and the classic chrome-plated “Q” grille, a staple in the fire industry.
BP200 Series mounting options
The BP200 series of compact speakers are available with various mounting options to perfectly fit specific applications
| BP200-EF | BP200-Q | ||
| Power | 200 W | 200 W | |
| Housing Material | 356 Aluminium | ||
| Operating Temp. | -40˚ to +176˚ F (-40˚ to +80˚ C) | ||
| Input Voltage | 32 Vrms | ||
| Physical Specifications | |||
| Width | 7.7 in (19.6 cm) | 9.9 in (25.1 cm) | |
| Height | 6.6 in (16.8 cm) | 9.9 in (25.1 cm) | |
| Depth | 0.04 in (0.1 cm) | 2.2 in (5.6 cm) | |
| Ship Weight | |||
| 20.7 lb (9.4 kg) | 22.5 lb (10.2 kg) | ||
| Model |
BP200-EF - 200W Stainless Steel Electric "F" Grill Recess Mount, BP200-Q - 200W Chrome Q-Siren Grille Recess Mount |
|---|---|
| Mounting Kit |
No Mounting Kit, Universal Bumper Mount Kit, Recess Mount Kit for "F" Grill - BP200-EF ONLY |
