FRC SPECTRA HR Tripod Lights
FRC SPECTRA HR Tripod Lights
FRC SPECTRA HR Tripod Lights
FRC SPECTRA HR Tripod Lights
$3,203.37 USD
{price}% OFF

The leadtime is 3 weeks from time of order

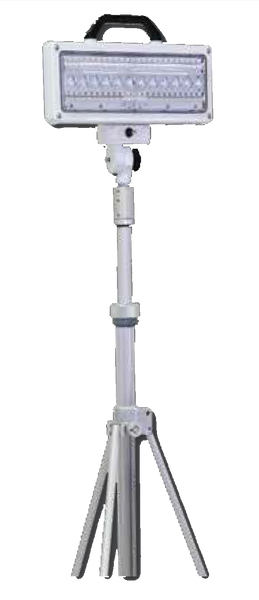

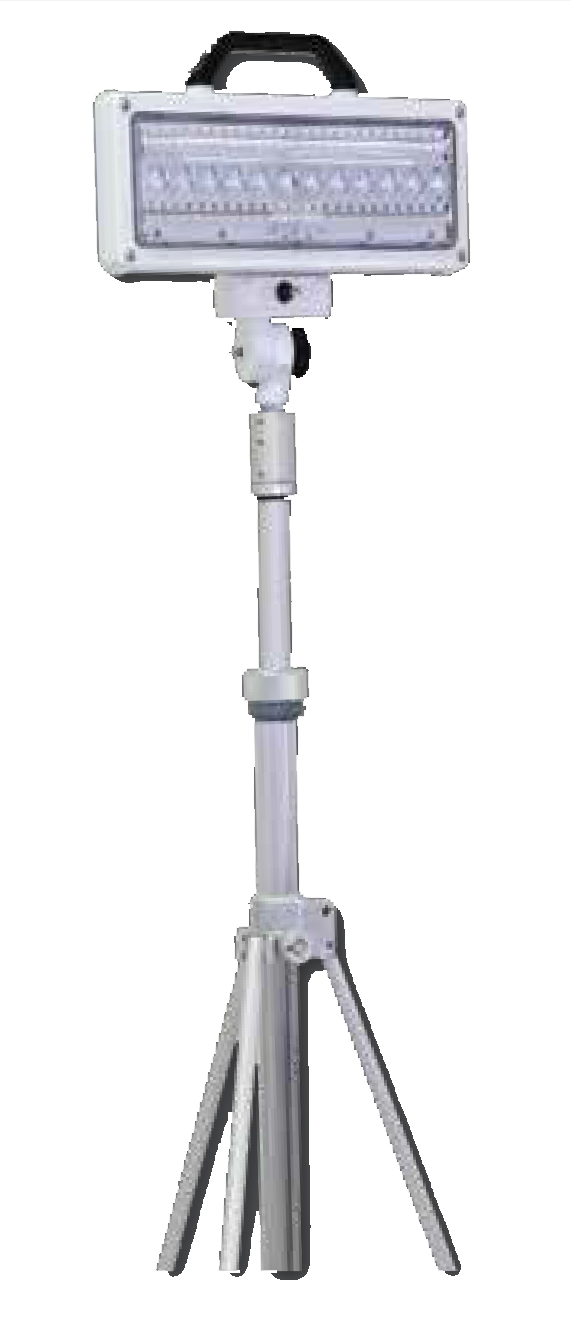

The SPECTRA HR was specifically designed to illuminate the face of a high-rise building and at the same time, the ground area in front of a fire apparatus responding in an emergency situation. Each 28,000 lumen Spectra HR achieves this illumination without lamp adjustment.

The SPECTRA Tripod is available in three Standard Sizes:

  • Full (600 Series) - 59" (closed without lamphead)
  • Medium (656 Series) - 45" (closed without lamphead)
  • Small (642 Series) - 32" (closed without lamphead

LIGHT FEATURES

  • Spectra HR utilizes two (2) distinct groups of lenses: Upper Group and Lower Group.
    • The Upper Group is designed so each lens projects wide beams of light at different angles to cover the entire vertical face of the building as shown.
    • The Lower Group is designed to illuminate the ground ahead of the apparatus.
  • 72 ultra-bright white LEDS - 34 for the Upper Group and 38 for the Lower Group.
  • Adjustable, pivoting mounting arm with a round, sturdy, reinforced knurled locking knob
  • Sure-Grip molded handle ensures reliable grip every time and keeps handle cool to the touch
  • Choose from the standard white bezel or the optional chrome or black bezels
  • Choice of Pole or Tripod mount with or without a switch.
  • Lamp head measures 14″ W x 3 ¾″ D x 5 ⅜″ H
  • Available in both 12/24 VDC and 120/240 VDC, with or without a switch.
  • UL certification

TRIPOD FEATURES

  • Air Cushioned Brake - This innovation allows the pole to lower slowly, when released, on a cushion of air. This helps to prevent pinched fingers and damage to the bulb.
  • Ease of Set-Up - FRC tripods are designed to deploy all three legs at the same time, allowing it to be set up quickly and easily at an incident.
  • Lightweight - The standard tripod weighs just 16 pounds!
  • Extends up to 12 Feet! - Fire Research tripods are designed to permit "overextension" of its legs so the tripod's lamphead can reach this incredible height.
  • Cammed Knobs - The pole and lamphead tightening knob will not unscrew or come off due to vibration.
  • Anti-Chatter Legs - Rubber caps at the bottom of the legs ensure a quiet ride.
  • Small Footprint - When closed the unit sets into an incredibly small lower bracket allowing ease of mounting just about anywhere!
  • Truck Mountable - All tripods are truck mountable, allowing them to be used as telescoping lights on the vehicle and off!
  • Wire Guard - Protects the lamphead lens, it is standard on all tripods.

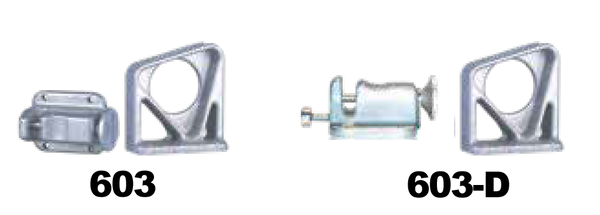

TRIPOD BRACKETS

  • The 603 bracket sets consist of a small triangular bracket for the feet and a QUICK RELEASE spring loaded dead-bolt lock to hold the tripod at its midpoint
  • The brackets can be used on the exterior of a vehicle or in a compartment
  • Similar to the 603, the dual bracket (603-D) consists of a small triangular bracket for the feet and a DUAL QUICK RELEASE spring loaded dead-bolt lock to hold the tripod at its midpoint. The lock can be released from either side.



Tripod
  • Full Size
  • Small Size
  • Medium Size
Plug
  • NEMA L5-15
  • NEMA L5-20
  • NEMA 5-15 Straight
  • Fire Plug Options
Bracket
  • None
  • 603
  • 603-D

In stock
