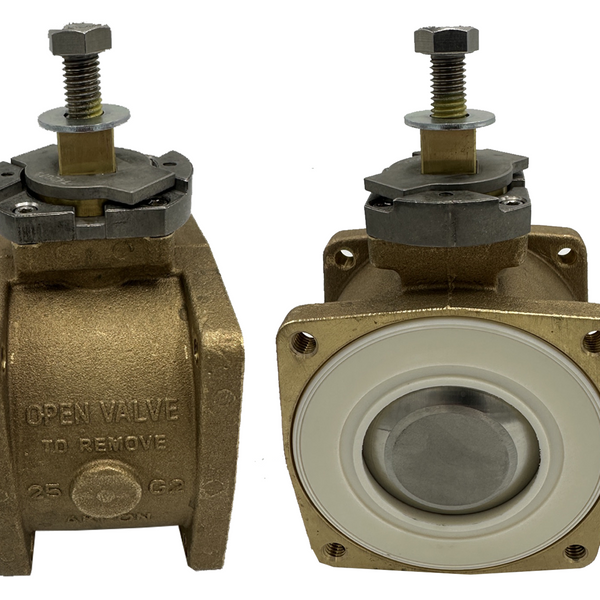

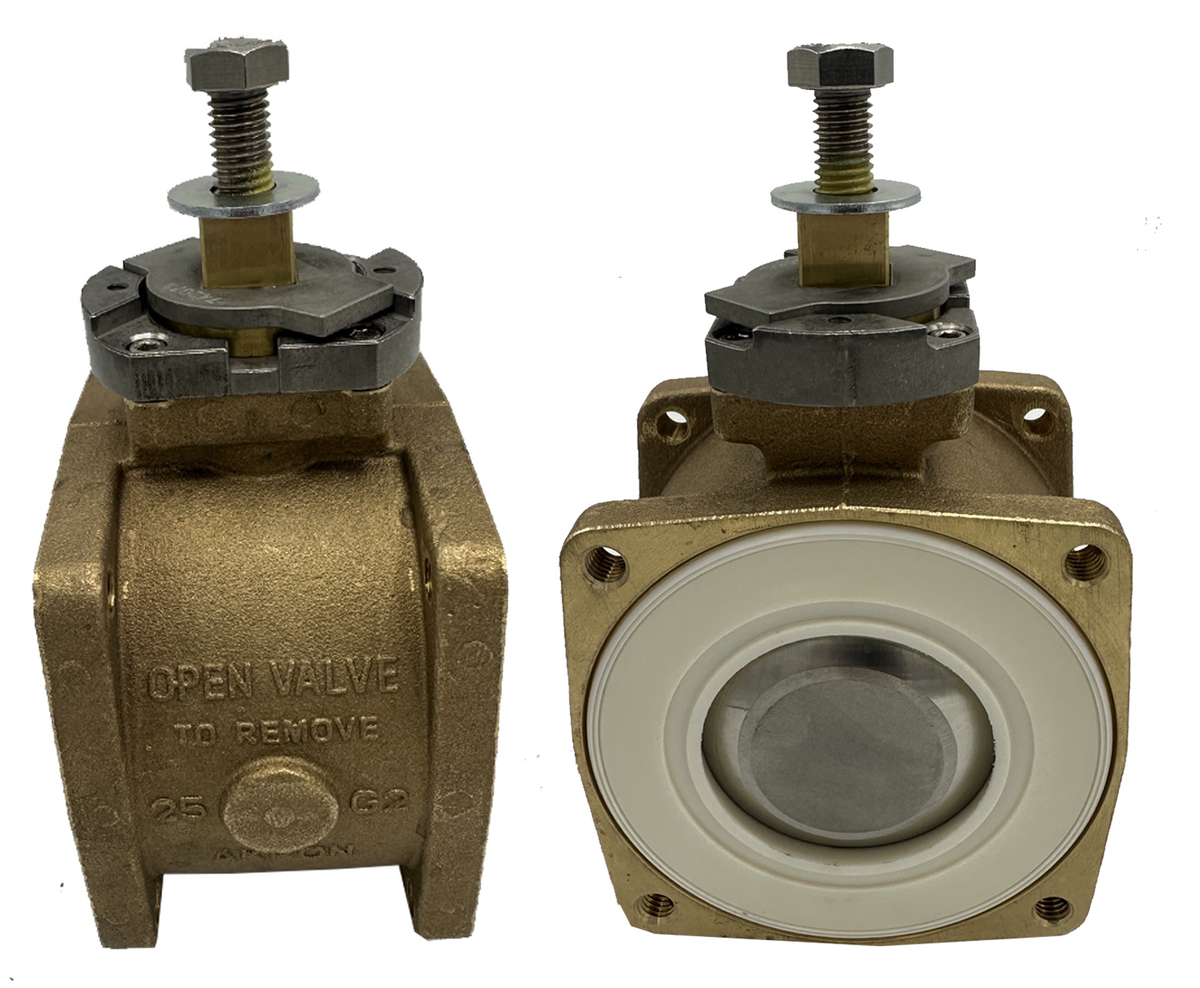

Akron Brass Style 8625 2-1/2" Generation II Swing-Out Valve Body Only, Non-Locking (P/N 8625-0129)

Description:

• Part Number: 86250129

• Model: 8625

• Series / Generation: Style 8625 / Generation II Heavy-Duty Swing-Out™

• Waterway Size: Full 2-1/2" (65 mm)

• Body Material: Cast Brass

• Ball Material: 316 Stainless Steel with HydroMax™ geometry

• Mechanism: Non-Locking (Stem turns smoothly throughout the 90° travel)

• Operating Pressure: Rated to 250 PSI (Tested to 500 PSI hydrostatic; meets/exceeds NFPA 1964)

Control & Actuation Compatibility:

• Electric Actuators: Akron Navigator / Navigator Pro (Style 8600 series / Style 86258005)

• Manual Handwheels / Gear Actuators: Akron worm-gear handwheel drives

• Manual Handles: Compatible with Akron Style SZ Twist-Lock Handles (e.g., P/N 88253010)

• Remote Linkages: Apparatus push-pull control rods equipped with a friction-locking T-handle or panel-side bracket

• (Warning: Not compatible with free-swinging manual handles such as Style R1, TS, or TSC, as backpressure will cause handle drift).

Navigator Pro Valve Controller Compatibility:

• Compatible with Akron Navigator Valve Controller Models: 9323, 9325, 9333, 9335

• Not compatible with legacy Valve Controller Model 9315 or older

Buyer Installation Notes:

• Sold as "Body Only" (Sub-Assembly). Requires inlet/outlet pipe adapters, tie-bolts, and your choice of handle or actuator.

• Ships with the manual SZ stop plate and drive stem pre-installed. If mounting an electric actuator or manual gearbox, simply remove the four 5/32" socket-head screws and center trunnion to expose the bare square neck.

• Lead Time: 4 to 8 weeks from receipt of order.
