The ZSTRUT Style Rescue Struts work on the “tension buttress” principal for quick and secure deployment construct of 4 gauge solid wall steel outer tube, inner threaded stainless steel column, double ZipNut® adjustment, and Simpson ratchet and axle straps. Our struts and engineered to effectively accommodate conventional and ultra-modern vehicle construction features. Each rescue strut comes with a durable accessory pouch and is powder coasted for an enduring finish and is third-party tested to a rated weight of up to 5,000 lbs.
Advantages:
- Less equipment does more work
- One rescuer can carry two complete struts
- Struts are easily applied by one rescuer
- Lower cost than many alternative systems
- Lighter, more compact design
- Replaces quantities of cumbersome wood cribbing
- All accessories are attached to the strut
- No Adjustment Pin Needed:
- Just pull up to extend
- Rotate collar to make fine-tune adjustments
- Pull up on collar to retract
Components
- (2) Small, Medium or Large Rescue ZSTRUTs
- (2) Witches Hat Point Heads
- (2) 90 Degree Heads
- (2) Accessory Pouches
- (2) Pickets
- (2) Simpson Ratchet Straps
- (2) Simpson Axle Straps
Details:
- Triangulate with One Ratchet Strap
- Self Contained for Easy Deployment
- Polymer Coated Base for Better Grip
- Base and Clevis Operate Separately so Base Will Stay Flat on Ground
- Large Clevis Allows to Pass Through the Ratchet Strap Head for Single Strap Triangulation
- Infinite Adjustment Due to 304 Stainless Steel Threaded Rod
- Comes with Accessory Bag Attached to Strut
- Simpson Ratchet and Axle Strap Rated at 1,300 lbs.
- Patented Zipnut® Technology Allows for Finer Deployment Adjustability with the Ability to Follow Lifts

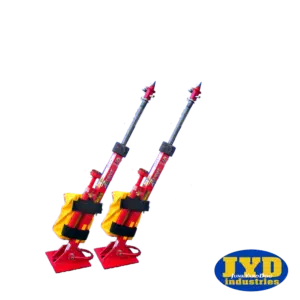

Small Z-Strut Set:
- Two (2) Small Struts
- Retracted Length of 27”
- Maximum Extension: 42”
- Total Individual Weight: 24 lbs.

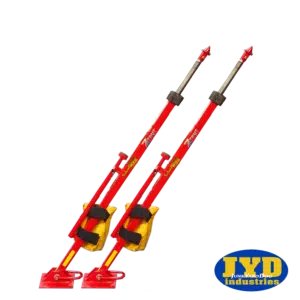

Medium Z-Strut Set:
- Two (2) Medium Struts
- Retracted Length of 39”
- Maximum Extension: 64”
- Total Individual Weight: 29 lbs.

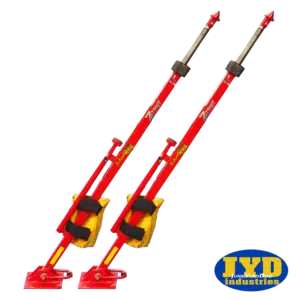

Large Z-Strut Set:
- Two (2) Large Struts
- Retracted Length of 51”
- Maximum Extension: 81”
- Total Individual Weight: 32 lbs.
